Home / Products / Lab Equipment / Desiccator / Aluminum Frame Desiccator / Middle Size Desiccator SAG1 type

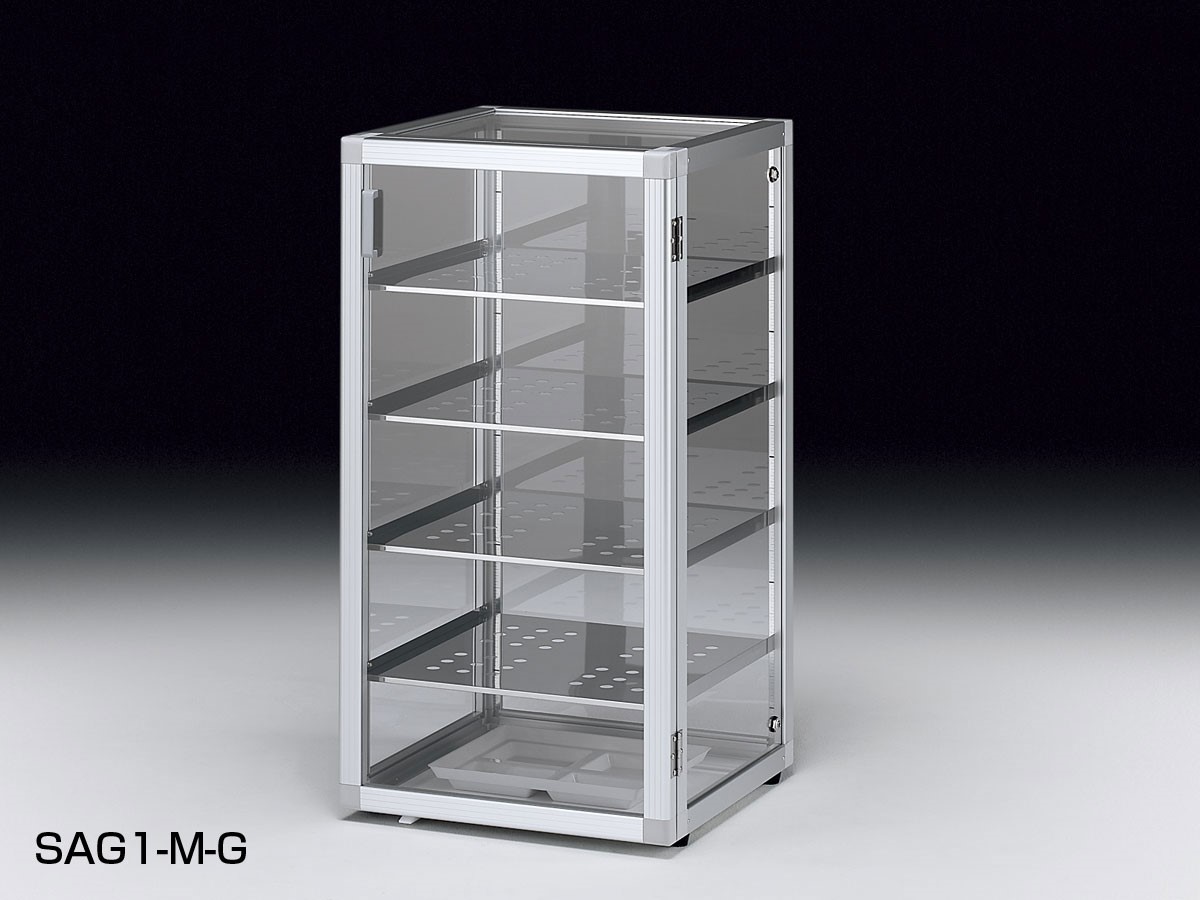

Middle Size Desiccator SAG1 type

Description

●Material: main body/Acrylic(antistatic: polyvinyl chloride), Frame/alminium, caster / nylon (with a stopper)
●Volume: 250L
●Door opening size (mm): 497W×990H
●Shelf size (mm): 494W×460D
●Shelf material: SUS430 Punching hole: φ20×36 holes
●Shelf position : As you prefer
●Shelf uniform load: 12kg
●Silicagel container: 1pc
●Total load: 120kg
●Main body weight: 36kg
●Caster with stoppers (Caster type)

Caution

●Valves can be attached via the connection ports on main body. (Rc1/4)
(Upper and lower side: total 2 positions)
●Shelf is not slide rail type.

Specifications

Catalog No.

19655
19656
19657
19658
19659
19660
19661
19662
19663
19664
19665
19666
19649

Model

SAG1-M-G
SAG1-M-GN
SAG1-M-GB
SAG1-M-C
SAG1-M-CN
SAG1-M-CB
SAG1-P-G
SAG1-P-GN
SAG1-P-GB
SAG1-P-C
SAG1-P-CN
SAG1-P-CB
Shelf only (T-1)

Main body O.D(mm)

537W×525D×1050H
537W×525D×1050H
537W×525D×1050H
537W×525D×1116H
537W×525D×1116H
537W×525D×1116H
537W×525D×1050H
537W×525D×1050H
537W×525D×1050H
537W×525D×1116H
537W×525D×1116H
537W×525D×1116H
494W×460D

Internal dimension (mm)

497W×470D×990H
497W×470D×990H
497W×470D×990H
497W×470D×990H
497W×470D×990H
497W×470D×990H
497W×470D×990H
497W×470D×990H
497W×470D×990H
497W×470D×990H
497W×470D×990H
497W×470D×990H
ー

Bore(mm)

Body diameter×height(mm)

Spec 1

Door: magnet
Door: magnet
Door: magnet
Door: magnet
Door: magnet
Door: magnet
Door: draw latch
Door: draw latch
Door: draw latch
Door: draw latch
Door: draw latch
Door: draw latch
ー

Spec 2

Board: acrylic transparent
Board: antistatic PVC (transparent)
Board: acrylic light-resistant
Board: acrylic transparent
Board: antistatic PVC (transparent)
Board: acrylic light-resistant
Board: acrylic transparent
Board: antistatic PVC (transparent)
Board: acrylic light-resistant
Board: acrylic light-resistant
Board: antistatic PVC (transparent)
Board: acrylic light-resistant
ー

Spec 3

Rubber feet
Rubber feet
Rubber feet
Caster
Caster
Caster
Rubber feet
Rubber feet
Rubber feet
Caster
Caster
Caster
ー

Spec 4

Shelf(pc)

4
4
4
4
4
4
4
4
4
4
4
4
ー

Scale(mL)

Material

MA/AL
PVC/AL
MA/AL
MA/AL
PVC/AL
MA/AL
MA/AL
PVC/AL
MA/AL
MA/AL
PVC/AL
MA/AL
SUS

Weight(Kg)

26
26
26
26
26
26
26
26
26
26
26
26
ー


