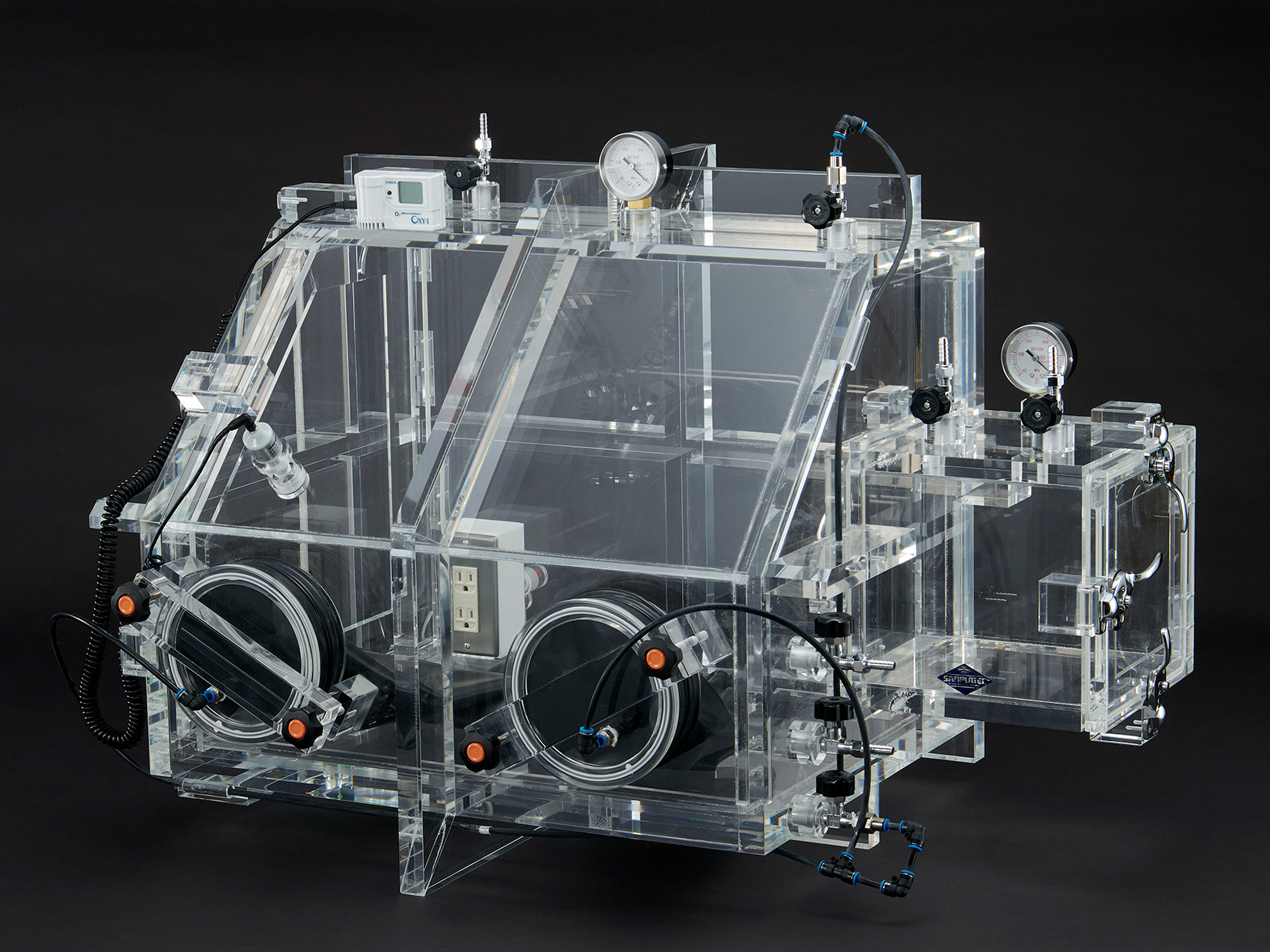

Anaerobic glove box (anaerobic chamber)
Description
Anaerobic glove box made of transparent acrylic with excellent visibility.
●Anaerobic chamber made of all acrylic.
Quickly creates the desired oxygen concentration environment by vacuuming and gas replacement with N2 or other gases. ●Equipment can be loaded and unloaded through the left side door, and samples can be loaded and unloaded through the right side pass box. ●The chamber is designed to be strong enough to withstand a complete vacuum.
Butyl gloves are used to prevent gas permeation.
The oxygen analyzer is equipped with a sensor cable with a measurement range of 0.0 to 25.0%, a resolution of 0.1%, and a measurement accuracy of ±0.5%.
Custom-made modifications are available, such as changing the dimensions of the main unit and pass box, the sensor installation position, and the glove. ●This glove box is designed to withstand a full vacuum in both the main body and the pass box, but rapid suction and aspiration may cause damage and accelerate deterioration of the glove box. ●When using as a vacuum desiccator, be sure to use it with the glove cap in place. ●The vacuum gauge indicates the differential pressure between atmospheric pressure and the inside of the glove box. (Unit: MPa) ●Internal operation under reduced pressure is not possible. ●Since both the main unit and the pass box are made of acrylic, sterilization with alcohols may cause surface cracks or other deterioration. Wiping with neutral detergent is recommended.
Caution
Specifications
Catalog No.
Model
Main body O.D（mm)
Internal dimension (mm)
Bore（mm)
Body diameter×height（mm)
Spec 1
Spec 2
Spec 3
Spec 4
Shelf（pc)
Scale（mL)
Material
Weight（Kg)
